Auto Game Player x IMX500

Custom Dataset and Labeling

The following tools were used to generate and label the dataset.

• FCEUX → running the game on PC
• OBS Studio → recording the game video
• ffmpeg → splitting the video into individual image samples

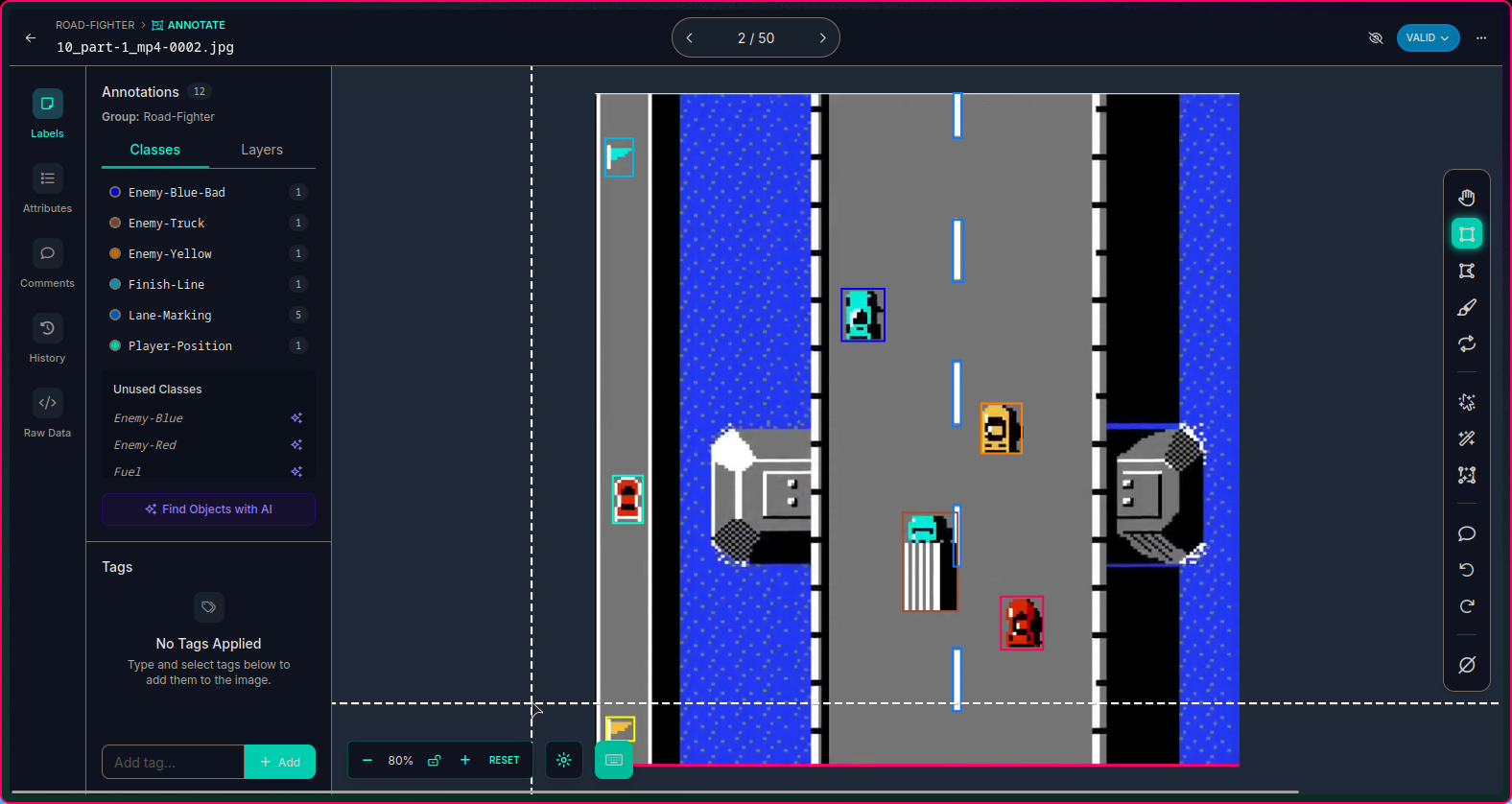

• roboflow → labeling the images

Fine-Tuning on custom dataset

• I selected a 70:20:10 split as shown in the image below ⇣
• This split is required as it is a good balance to make sure the model is tested on all classes of data and doesn't miss anything or trains on less data.
• Using the yolo command line tool, I trained the model on these parameters.
  yolo detect train model=yolo11n.pt data=data.yaml epochs=60 imgsz=416 amp=False batch=8

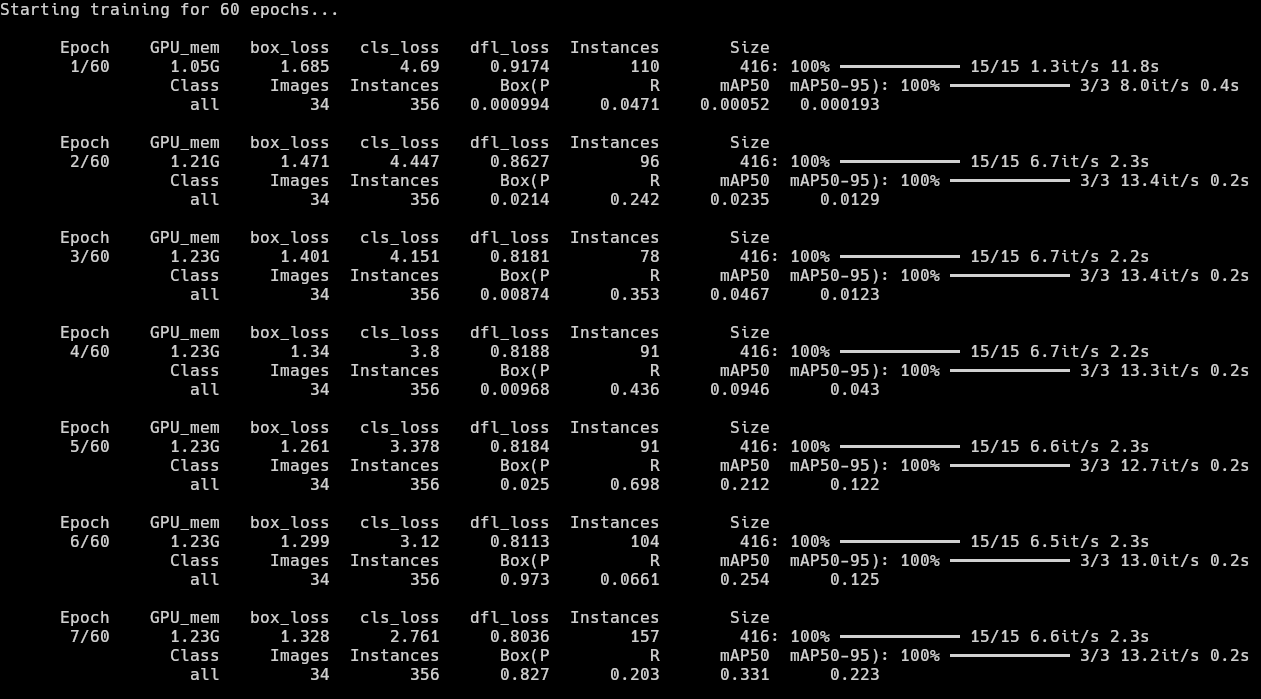

• As seen here, the precision in the first few epochs are not very good, but improving in the right direction. Main improvement is in Recall due to zero post-processing filters and simple sprites in the game. There was one major spike in the mAP50 in the 4th epoch but the model clearly got overconfident there and reverted back to 0.2s. There is very little improvement in Precision and a major dip in Precision from 0.698 to 0.0661 but we will see better results much further.
• At epoch 36, the model finally scored above 0.85 mAP50. The Recall is also pretty good at around the ~0.85 range. We can see the model has essentially finished learning and reached saturation. The epochs after this give minimal improvement if any.

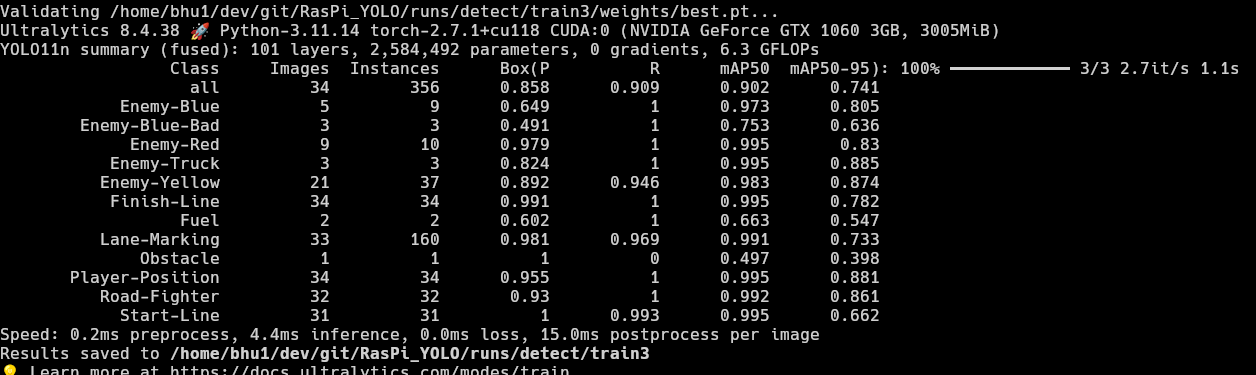

• Since the training was happening so quickly on my GPU, I decided to let it run and watch how it performs by the end of 60 epochs. It reached the ~0.9 mAP50 scores with ~0.9 Recall which is pretty good. It also produced a good mAP50-95 score of ~0.74 by the last epoch which is really good for my use case as the game in question uses simple sprites and the YOLO model's capture rate being 16 frames per second, the model would recognize objects at least once in 2 or 3 frames in the worst case scenario.
• I initially thought class imbalance would be a problem as there are Lane-Markings in every single image of the dataset, that is why some classes like Obstacle (0.497), Fuel (0.663) and Enemy-Blue-Bad (0.753) have relatively bad mAP50 scores. But the model works fine overall.
  A better solution instead of depending on the "it might get detected at least once in 2 frames" hope, I could add more images of the classes that have very less labels to balance the dataset and train the model again. That will definitely get the model to near perfect results, given the simplicity of the classes.

Exporting model to IMX500

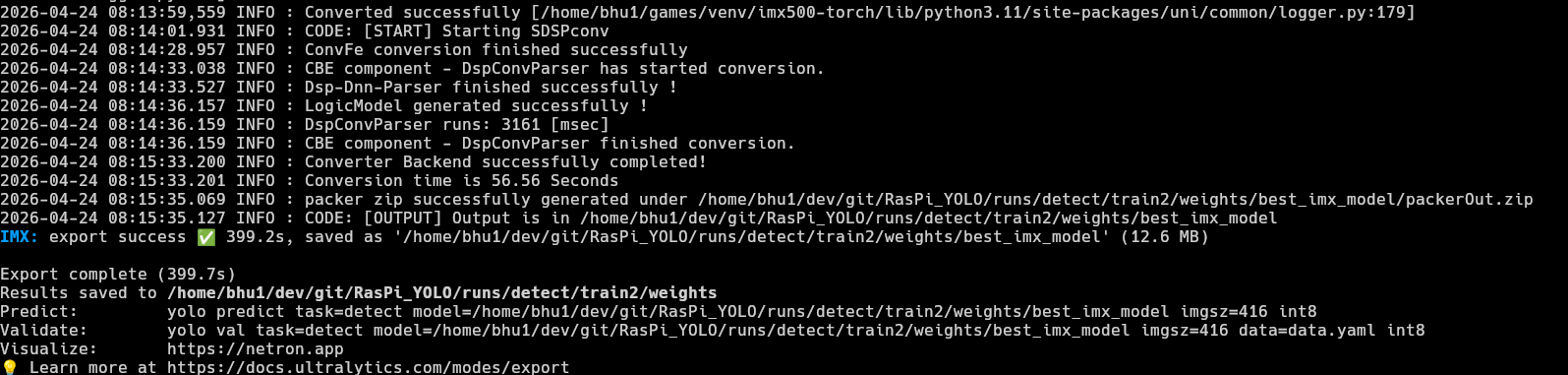

• I have trained the model on my custom dataset. Now, all that remains is to make it usable in the IMX500 camera. The official ultralytics documentation shows us how to convert the now fine-tuned model to the IMX500 format.
• yolo export model=/home/bhu1/dev/git/RasPi_YOLO/runs/detect/train2/weights/best.pt format=imx data=data.yaml
  As seen in the code, the best.pt weights are used again. But, this time, they are used to export the model and the format used is format=imx.
• I just transfered the file to the RPi and this part was done. The 3 most widely used image resolutions are: 320x320, 416x416 and 640x640.
• 640x640 is an excellent choice if we need accuracy, but for this project, I need to focus on latency as well. Larger tensor image means more inference time, I might lose lots of milliseconds just to identify a simple sprite on a computer screen.
• In that case 320x320 must be the best choice, but it's a tradeoff for model quality and results and since my dataset was already imbalanced, I decided to go with the middleground → 416x416.
• Once the model exported, I navigated to the output directory to find the packerOut.zip.

Testing model on RPi Zero 2 W

• I moved the packer.out file the RPi. In my case, I hosted a quick web server using python -m http.server and downloaded it on my raspberry pi.
• Folder structure on RPi
  yolo11n_imx_model
  ├── dnnParams.xml
  ├── labels.txt → Has to be manually created (example)
  ├── packerOut.zip → Has to be placed in the right directory
  ├── model_imx.on
  ├── model_imx_MemoryReport.json
  └── model_imx.pbtxt

• After the basic setup was done, I headed back to the official ultralytics documentation to get the code to run the model on the RPi and ran it on my RPi immediately. That's when I noticed this...

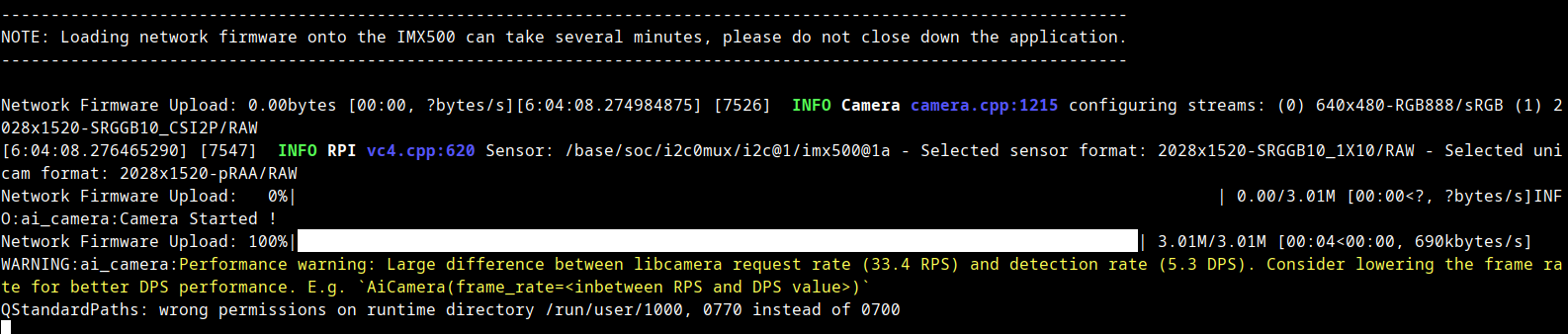

• Large difference between libcamera request rate (33.4 RPS) and detection rate (5.3 DPS).
  The code itself ran, the model could draw bounding boxes and everything, but it was horribly slow. I Then tried to use a lower FPS rate, but that wouldn't work either. Since I was using VNC, I had a hard time understanding that the problem was in the RPi itself.
• The RPi I was using was a Zero 2 W, which has 512 mb ram and a quad core Arm Cortex A53 and that was the reason YOLO was struggling.
• One might ask, "If the processing is happening in the camera, why does the RPi limit YOLO here?"
  The answer is a bit... weird... and funny...
• The RPi is not running the YOLO model, the RPi is struggling to display the camera view and show the bounding boxes at the same time.

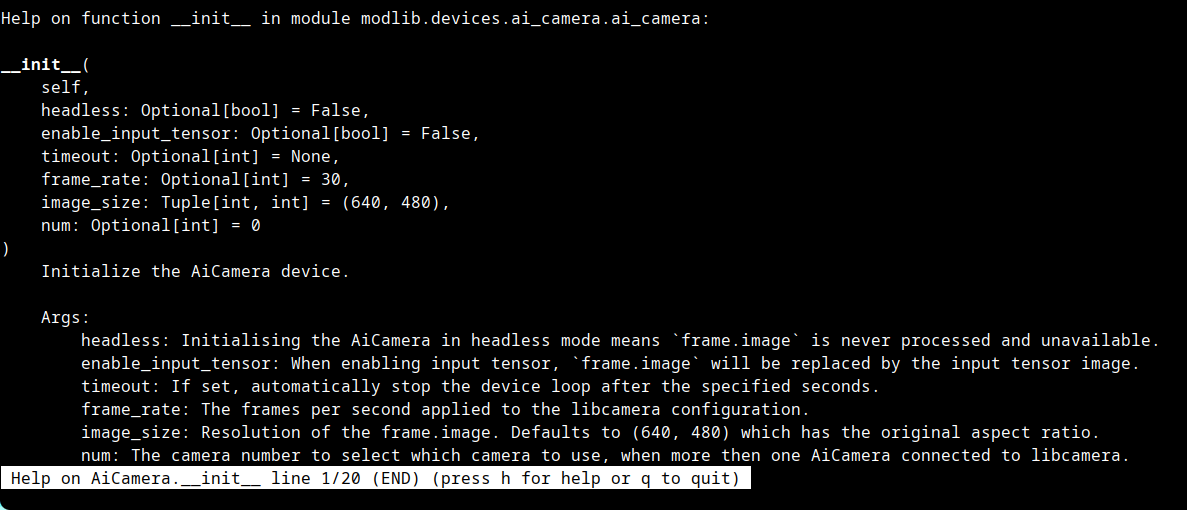

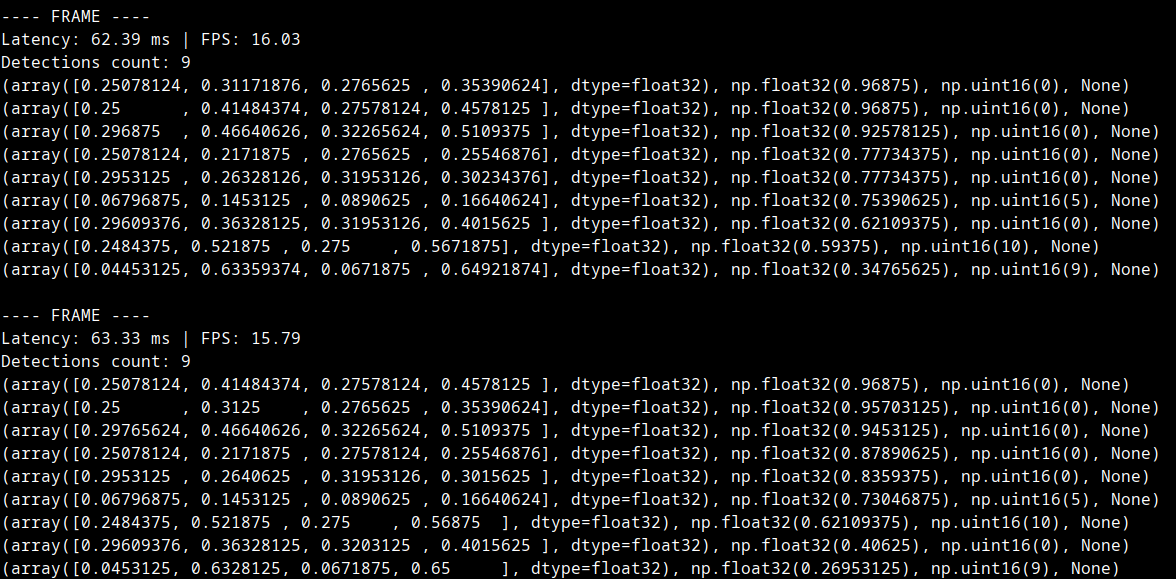

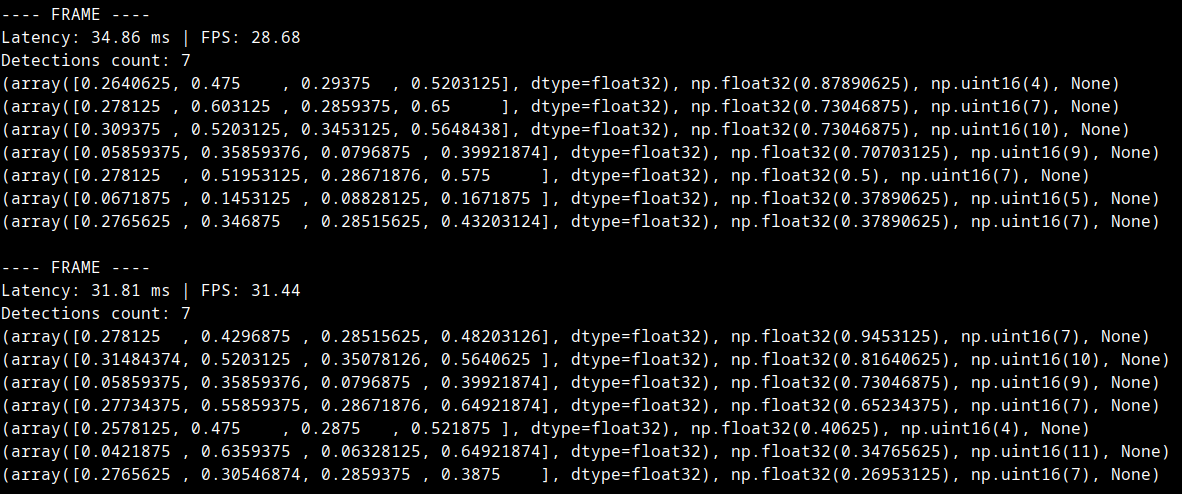

Applying Logic to make the agent smart

• From the metadata, I found out the positions of the player, enemies, obstacles, lane markings, etc and designed a basic algorithm where the model suggests directions to move as depicted in the image below. It may not be the most advanced system but it is pretty good for a use case like this.
• I have factored in a few rules that must be there no matter how much development this project gets:
• Player car is red. One of the enemy cars is red as well, and the model might think the enemy car is the player car or vice versa. So I made this rule such that: if red_car[y_pos] > 0.75: player_car[pos]=red_car[pos] which means if the car is in the bottom quarter, consider that as player car.
• Since no model can be 100% perfect, especially a low end edge model meant for speed tasks rather than accuracy tasks I decided to average the positions to reduce jitter. This way, the movement of the position of any element will be smooth rather than jumping around from corner to corner.
• Must make the system check the jitter of movement, if it is over a certain limit, compared to previous samples, ignore the current sample completely.
• Combine all enemy classes into 1 common group called enemies to reduce complexity for now. Each type of enemy has their own capability, but the current task must be to stabilize the movement.

Finishing the loop: Button Input

• 2x Servo Motors: using servo motors to press the physical keys on a keyboard or a controller.
• USB Gadget Mode: using RPi with USB Gadget Mode where it can pretend to be a USB HID device and send inputs directly via usb cable.

• sudo nvim /boot/firmware/config.txt under [all] i added dtoverlay=dwc2
• sudo nvim /boot/firmware/cmdline.txt added modules-load=dwc2
